Hercules & Xena


I have had a lot of people who have been asking for Photos of Hercules & Xena The Game Server I started to build about 2 to 3yrs ago,
to go in GamingSA.com.  Now it's finished so hear it is.
I have had a lot of Noob's saying have you had it running and have you got anything running on it etc.
and the answer is YES this server is 110% running and working beautifully.

And I have had it running at home with all the Dedicated Servers running for about 2 to 4 weeks
So I took all the photos while both servers Hercules & Xena where running.
So you could see for yourself that it is running beautifully and you can see in the all the photos, all the fans spinning... even the photos of it upside down!

Everything is custom.
The case is made from light aluminium.

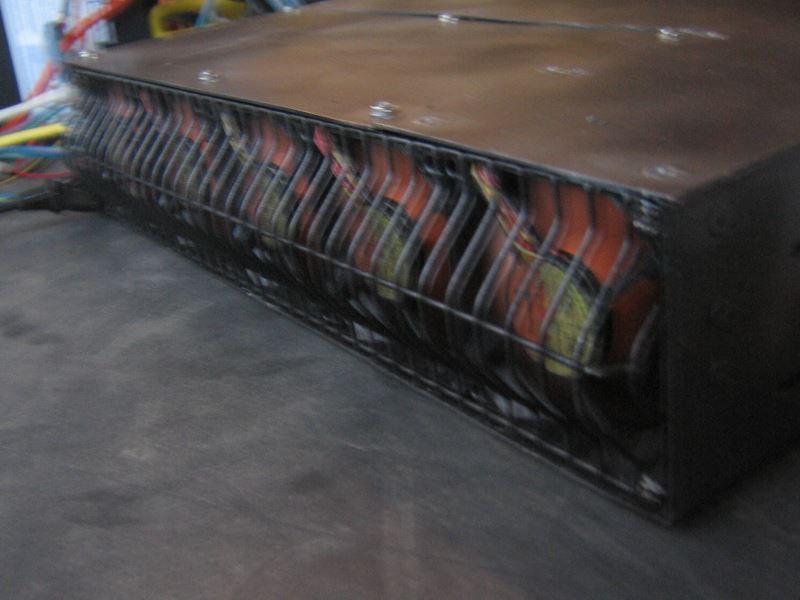

The fan grills are made from bar heaters grills and then re-bent and shaped to fit.  All aluminium was bent and shaped up the shed too
and the PSUs are all customised and anything that was changed was professionally soldered and heat-shrinked.
As you can see by the photos there is a lack of space so all the gender changes I had to mod too so they would fit
and most of fans needed to be changed on the linishing machine to let the PSU cables etc come into the case
Even the Hercules & Xena logo on the case took me hours to edit and make
and the paint job took its time to get something to suit the Hercules & Xena theme.
I modded SOFII Server... as you can see in photo its got GSA and GamingSA.com on stuff in game.
There are 21 fans in the box and 17 of them are 74CF hi speed TT case fans. It sounds crazy :D

Anyway unfortunately GamingSA.com have now decided as it is a custom case they now won't accept!

Its just under 15KG's with everything in it running so that = 7.5KG ea PC some of the TT cases are 19KG's with nothing in them
and its 425x750x90 so its the same size as a normal 2RU rack I got off eBay just 50mm longer

1st up Hercules

specs

Prescott 2.8Ghz 1MB 800MHz HT @ 3Ghz
MSI 875P Neo  ver. 2
2GB DDR Dual 400 Ram
XFX 5200 128MB Dx 9 AGP Card
2x WD 36Gb 10k Raptors HDDs
1GBit Intel LAN Card
550W Antec PSU


Servers on Hercules

1st HDD

Windows XP PRO
GamingSA.com BF Pirates v1 Final
GamingSA.com DC Final
GamingSA.com Advanced Tactical Center For BF2
GamingSA.com Venty Server

2nd HDD

GamingSA.com BF42 3 best maps
GamingSA.com IS82 v1.81 Final
GamingSA.com SOF2 ROCmod
GamingSA.com BF2
GamingSA.com MOHAA Spear Head

2nd up Xena

specs

Northwood 3Ghz  800MHz HT @ 3.3Ghz
MSI 875P Neo ver. 2
2GB DDR Dual 400 Ram
XFX 5200 128MB Dx 9 AGP Card
2x WD 36Gb 10k Raptors HDDs
1GBit Intel LAN Card
550W Antec PSU


Servers on Xena


1st HDD

Windows XP PRO
GamingSA.com BF Vietnam
GamingSA.com Advanced Tactical Center For BF1942 & DC
GamingSA.com StuntsTweaked
GamingSA.com SOF I

2nd HDD

GamingSA.com BF1942 TDM+CTF+CON
GamingSA.com Eve of Destruction
GamingSA.com BF2 S/F
GamingSA.com Rune v108
GamingSA.com Wolf Enemy Territory


now for pics

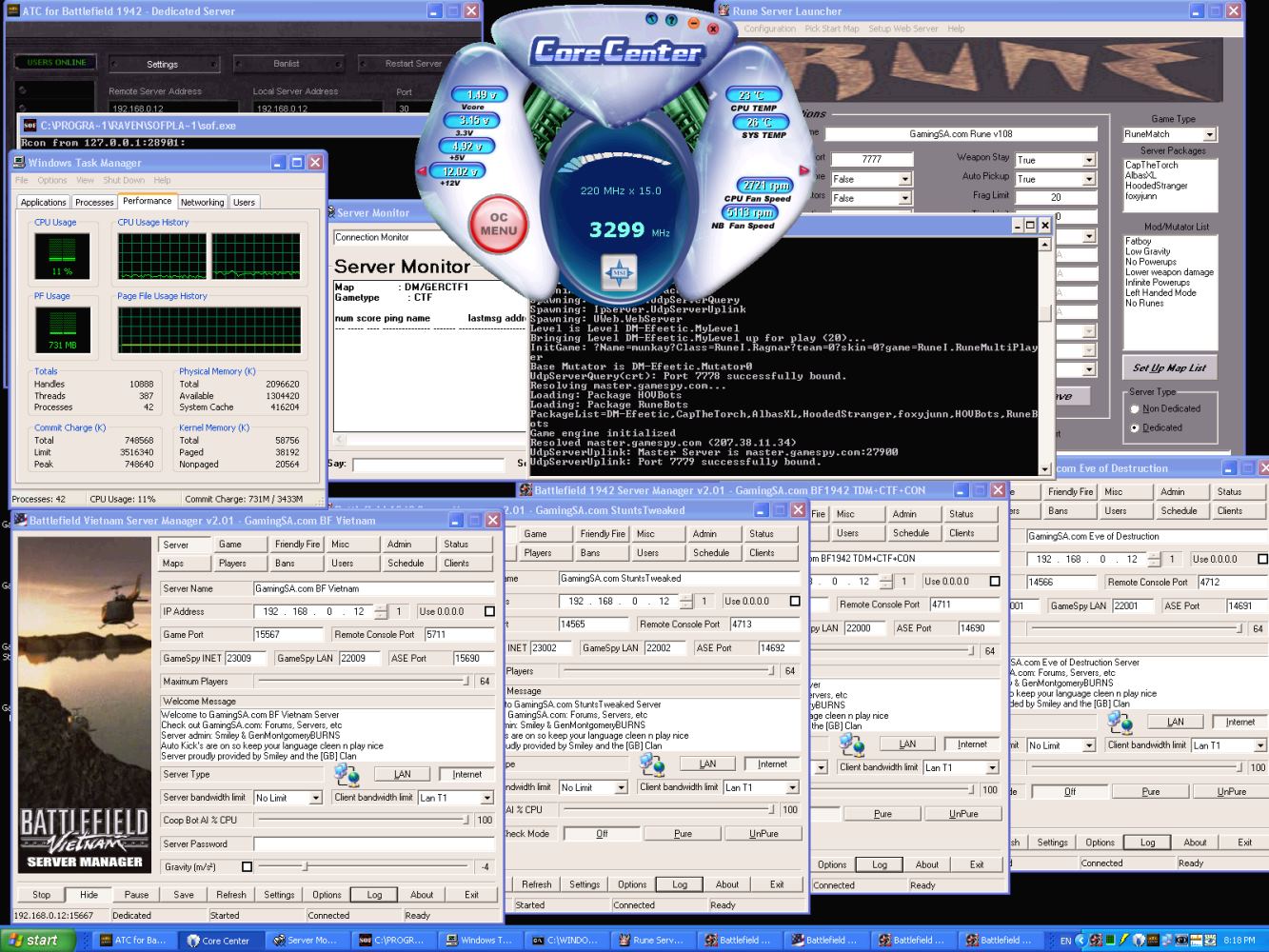

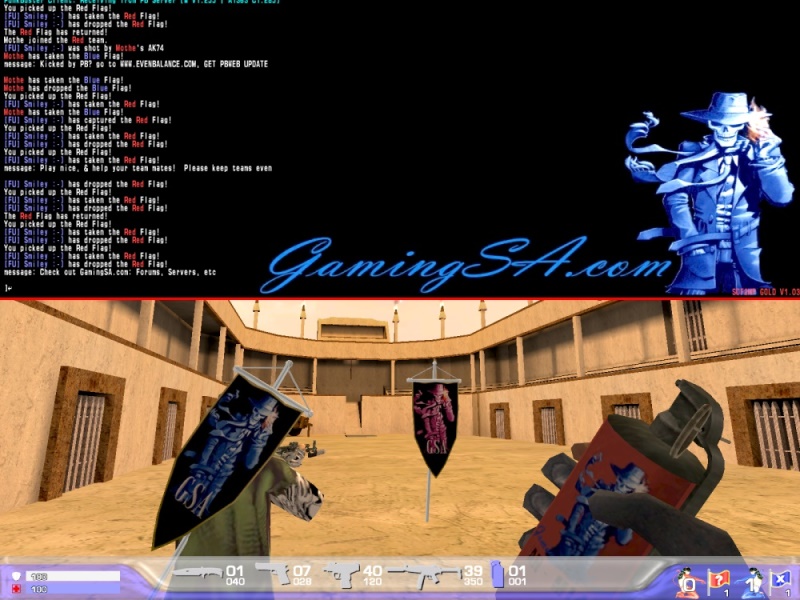

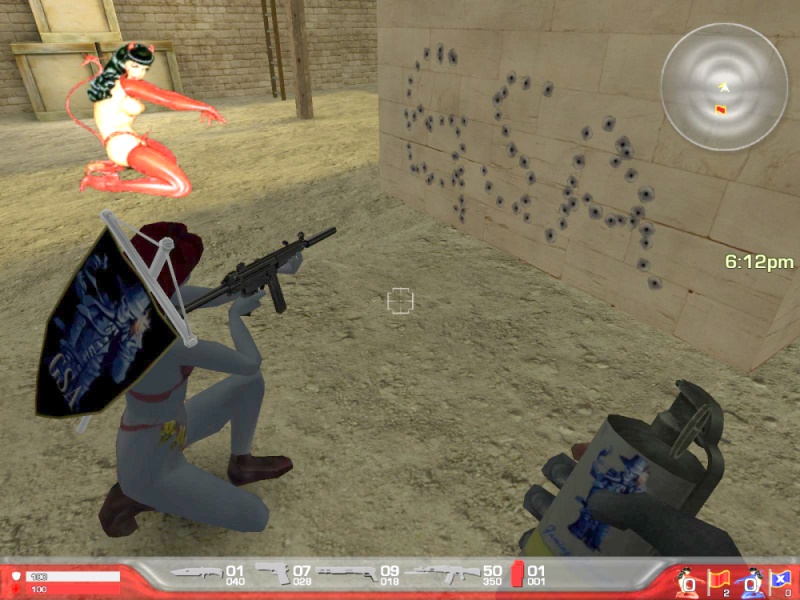

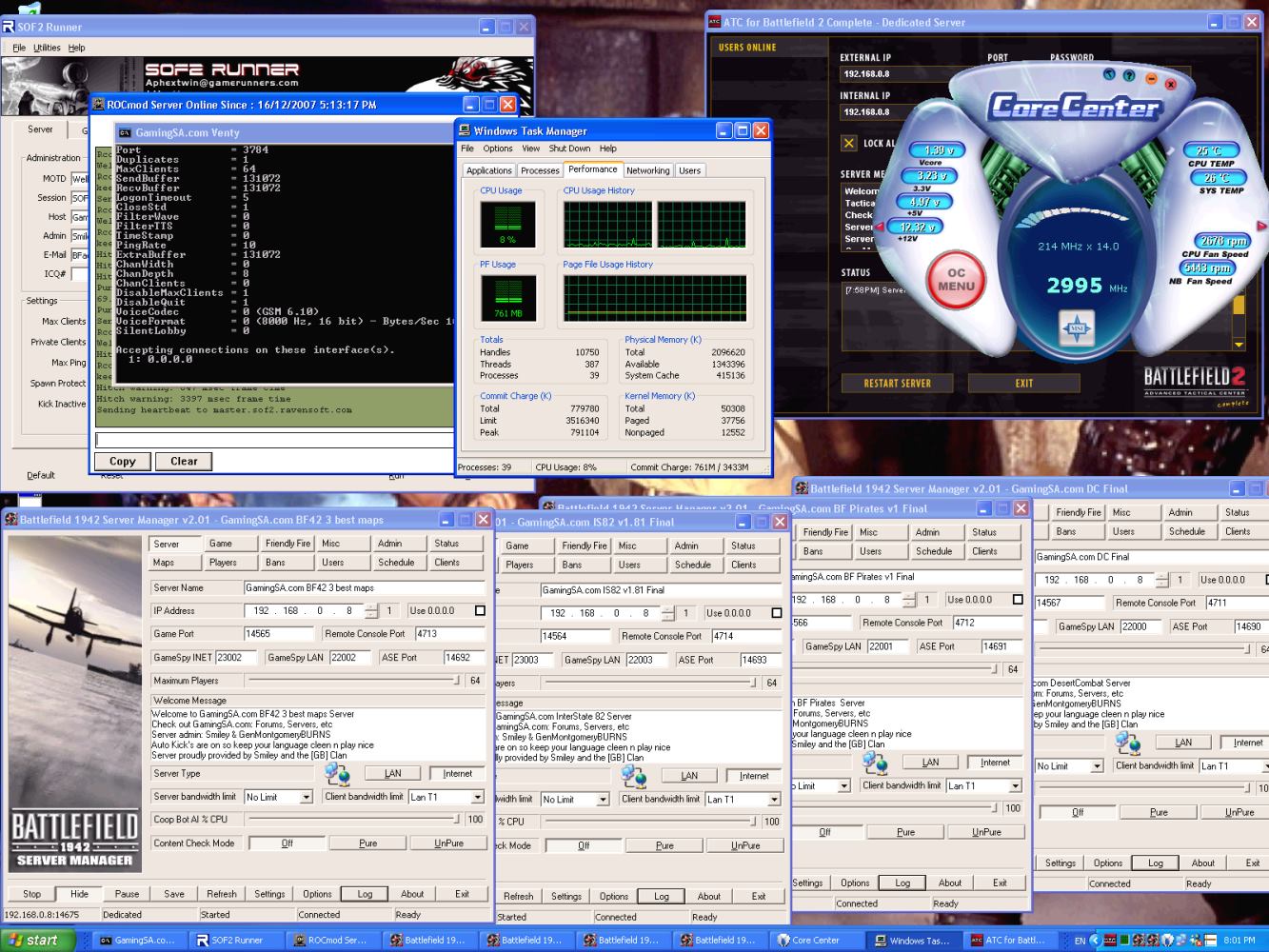

SOF2 server pics

Hercules

Xena

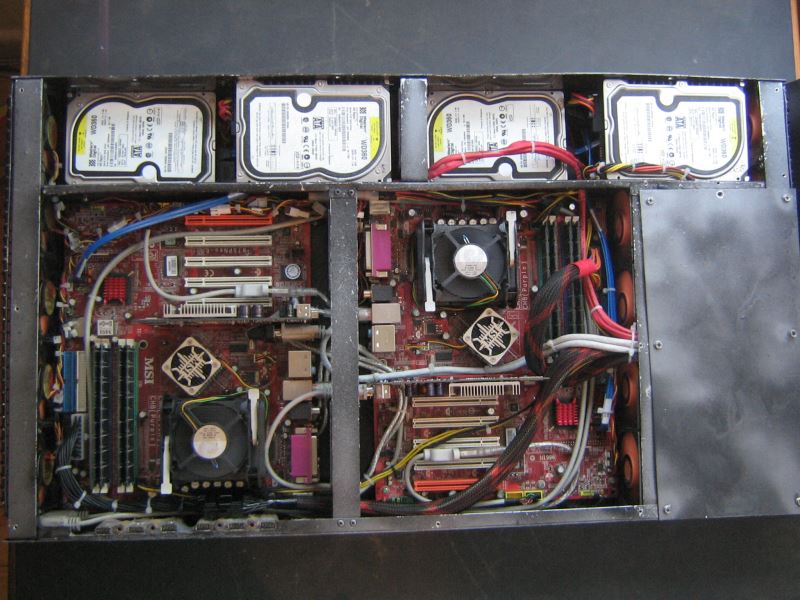

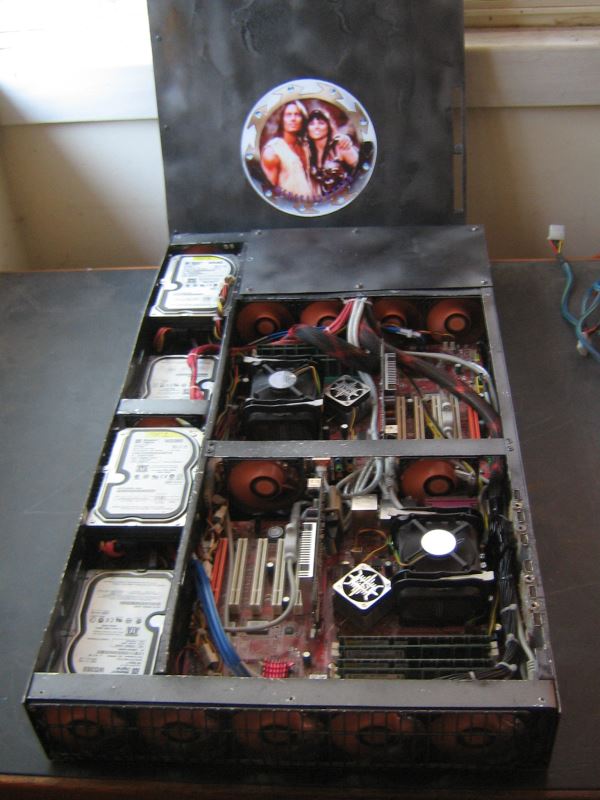

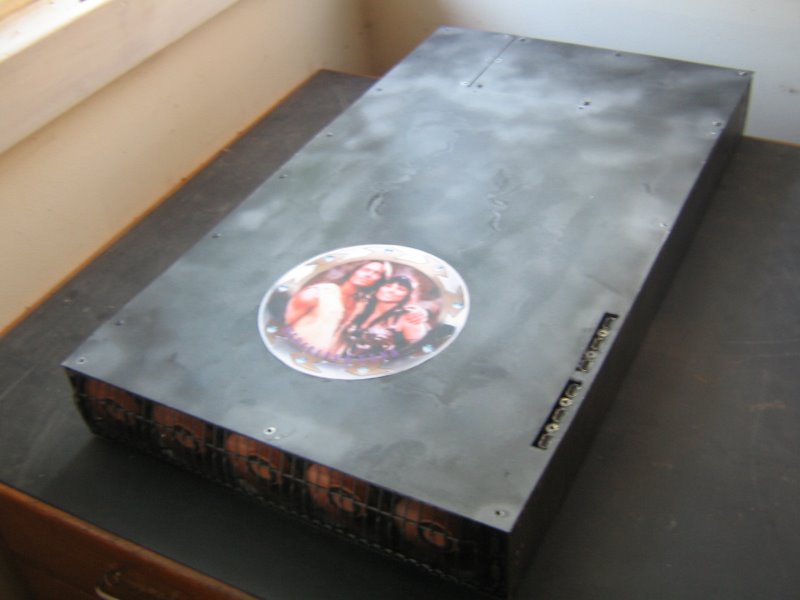

Hercules & Xena

3x USB and speaker and mic on the top for ea PC

In the front there is VGA and on/off switch down the bottom for ea PC

Top Front PSU is at the back to keep the heat away and to keep it separate from rest of PC

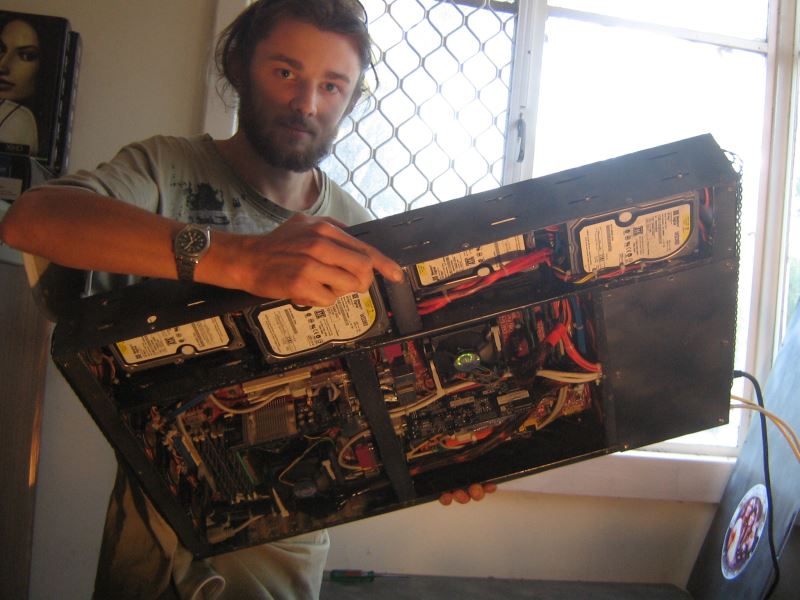

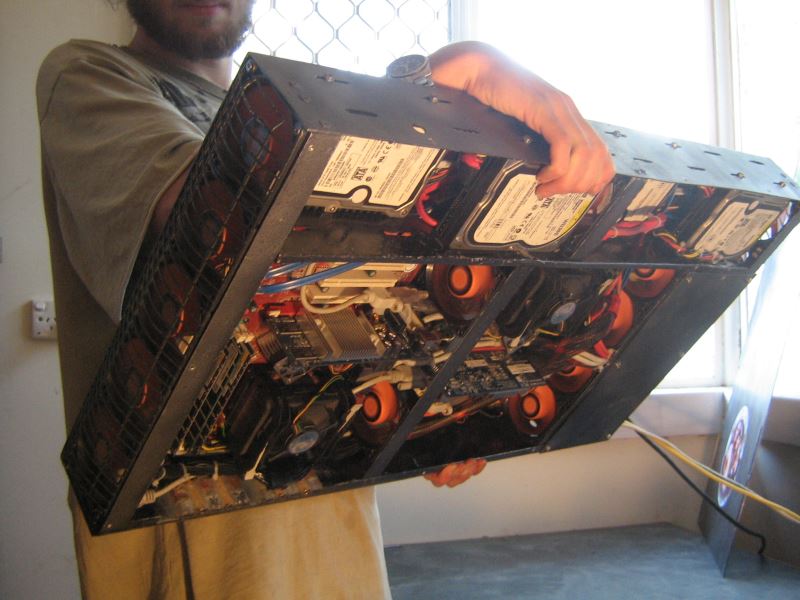

Upside-down when running just to show that everything is built properly

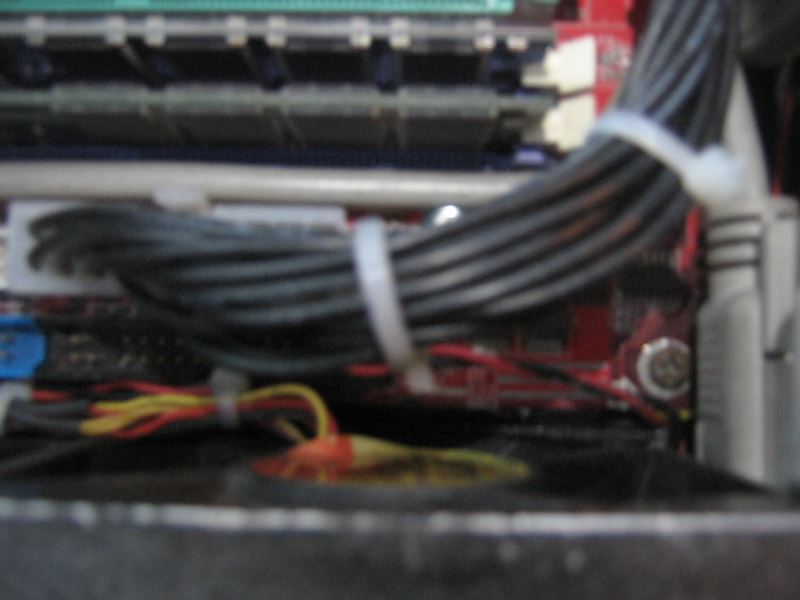

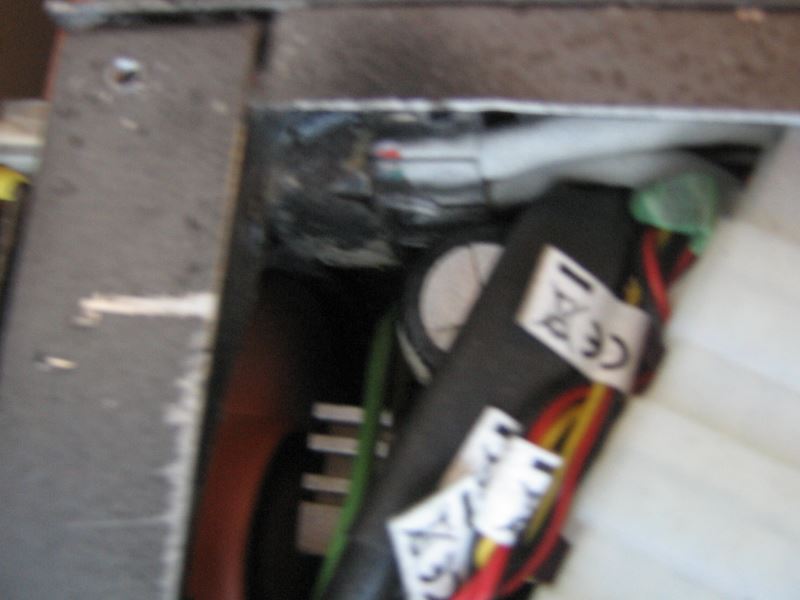

Wow!  it's a tight fit lol

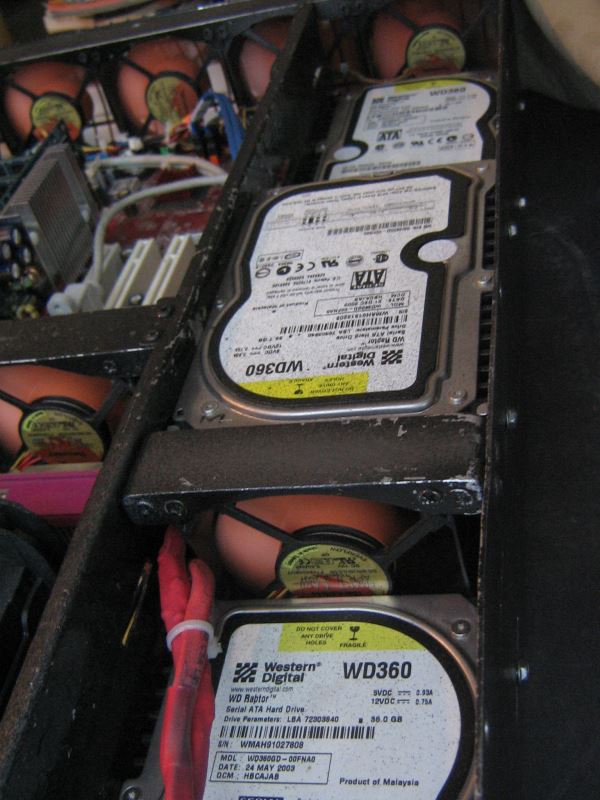

Can have up to 8 HDDs

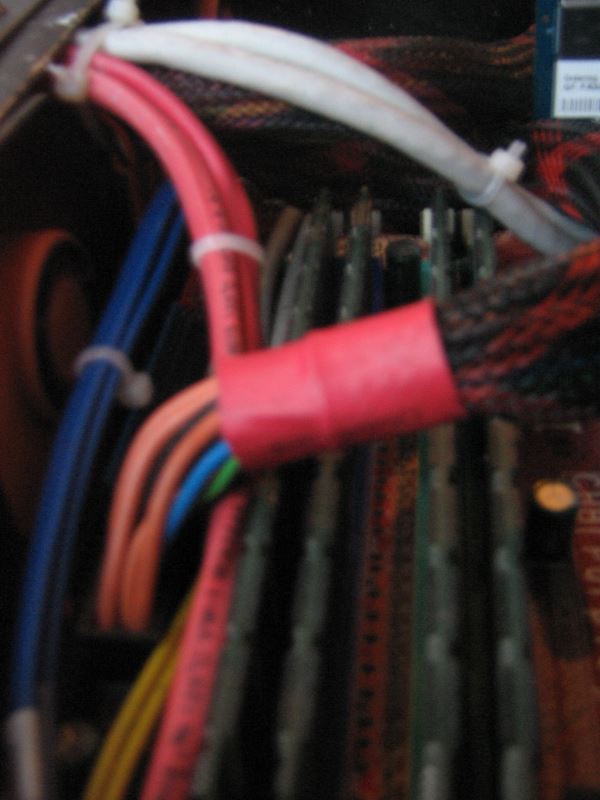

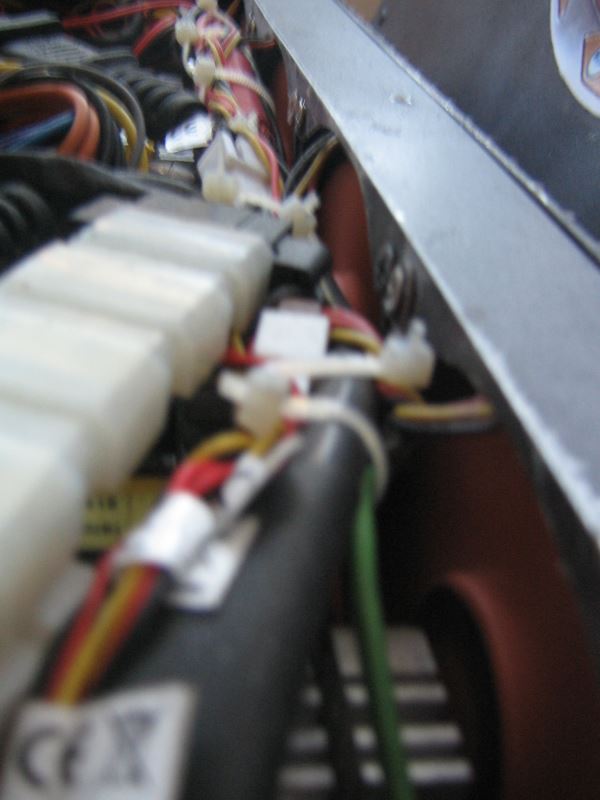

tight fit lol

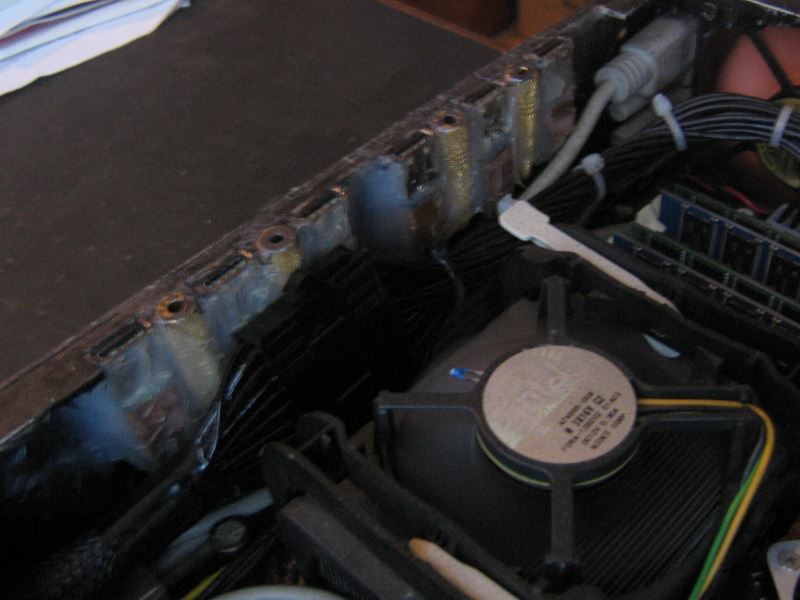

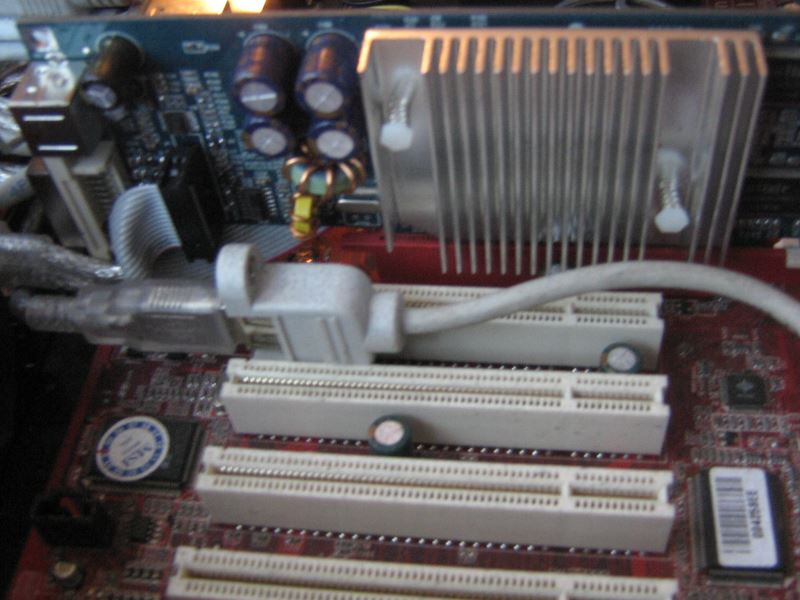

AGP card and 3rd USB

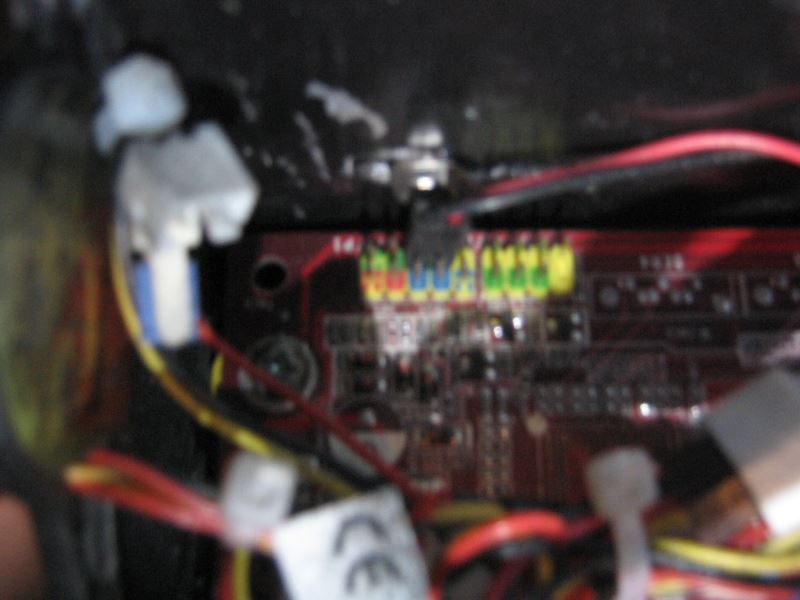

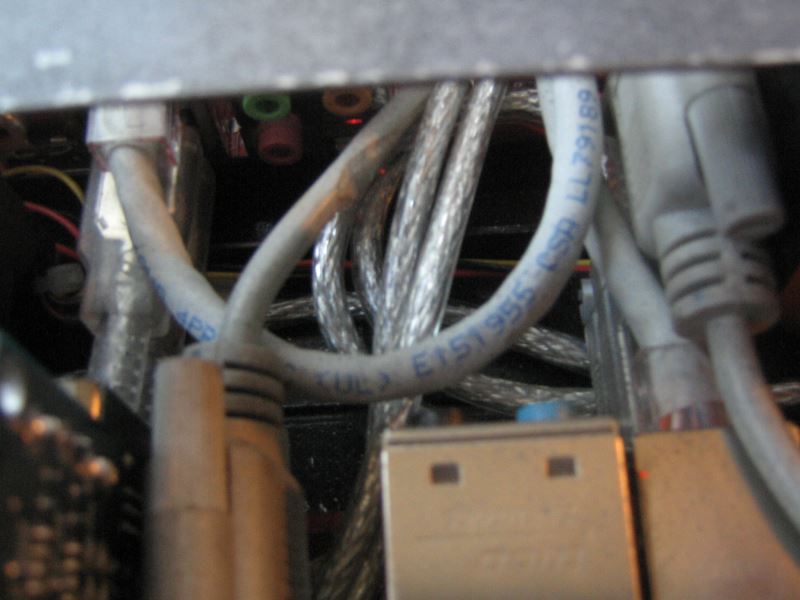

USB's and audio

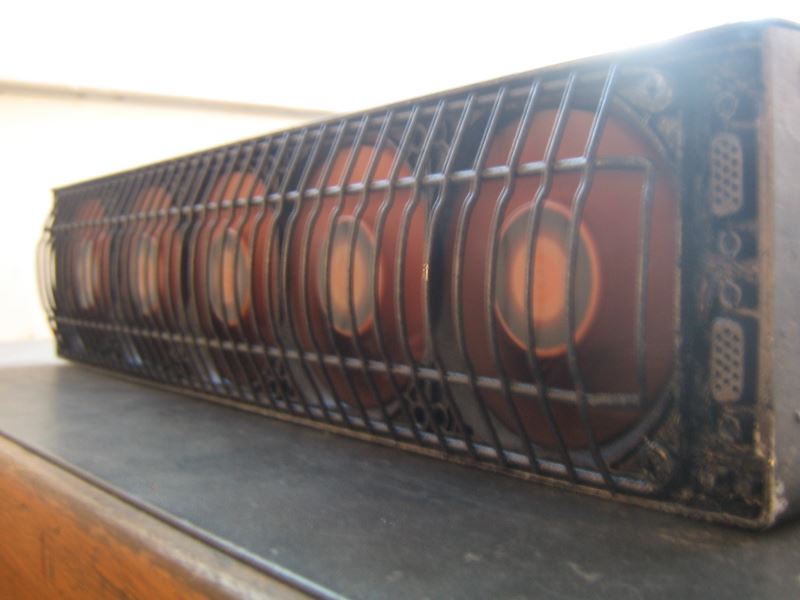

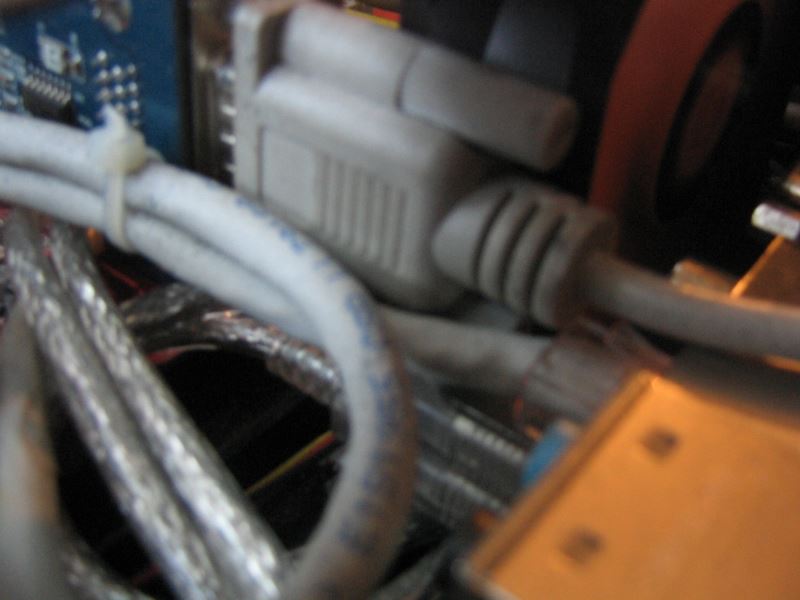

Front VGA and  Fan

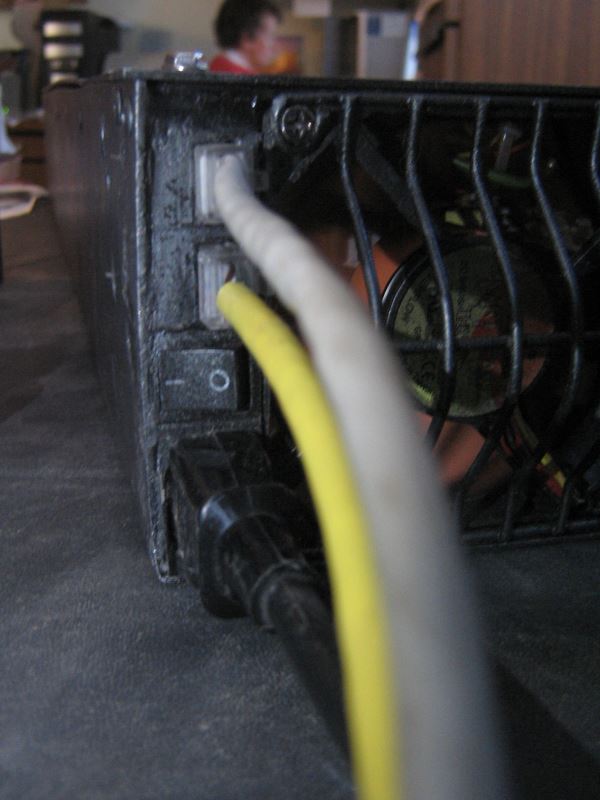

The back has 1 Power and on/off and 2x 1Gbit LAN jacks

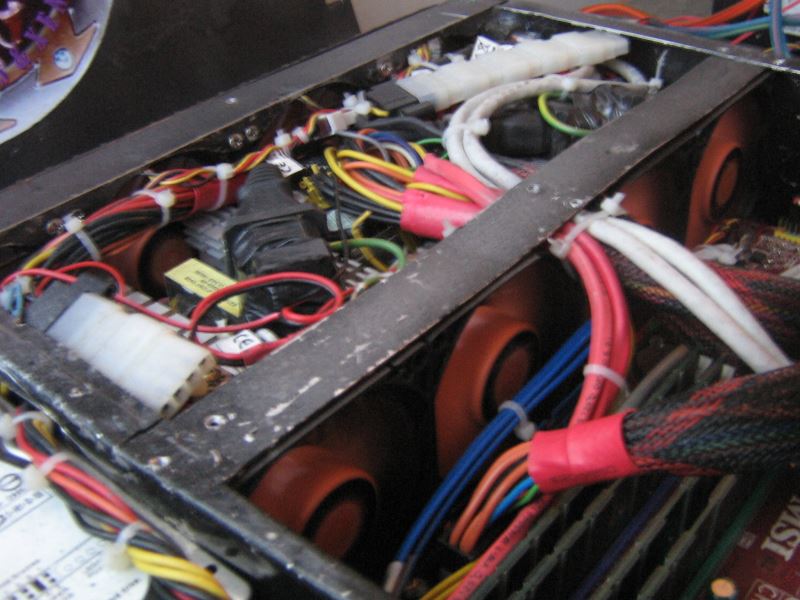

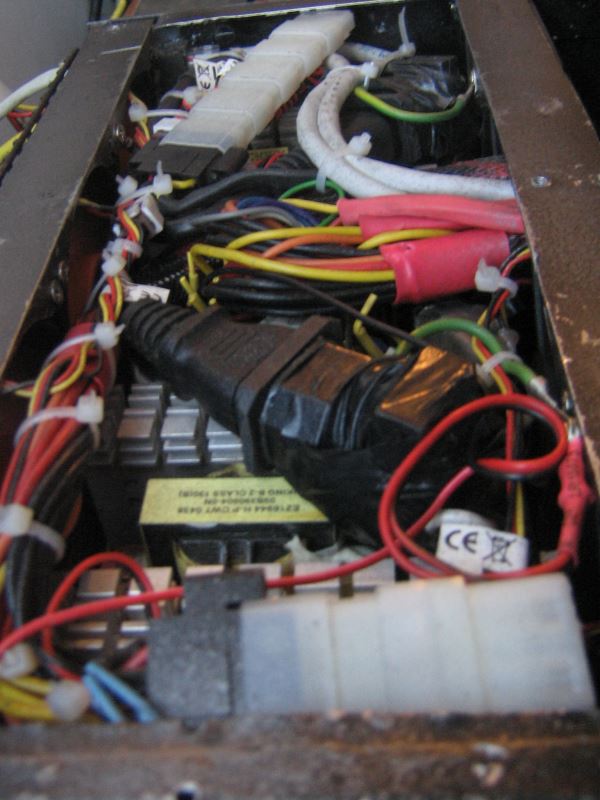

other side of lan jacks with PSU

The back of it



2x 550W Antec PSU's










Thanks for looking
